Miracle Method is on the 10.0.0.X IP space. To save myself typing/pasting, I will use the number of the last octet only.
5: MM-SW1.miraclemethod.com
6:
7: idrac for Dell Server 33XKGK2
8: MM-HV (Hypervisor, holds QB, DC, FS)
9: MM-QB (QuickBooks server)
10: MM-DC (main domain controller)
11: MM-FS (secondary dc, fileserver)
12:
13:
14: Meraki Gateway
15: idrac for Dell Server DGR1ST3
16-30:
31: tsparksqb (all ending in QB are VMs so remote users can "locally" access Quickbooks Server which apparently does not work properly, if at all, over a VPN)
32: jtaberqb
33: cdavisqb
34: admintoolsvm (WSUS mostly)
35: zabbix (mostly for server monitoring but many of the user devices are added)
36: chuckqb
37:
38: graylog (for AD log searches/monitoring)
39-62:
63: QBVM (Holds the qb machines, admintools, zabbix, graylog, and snort)
64-88:
89: Datto Server Backup Appliance (local and offsite backup)
170: Canon iR-ADV C5535 (main printer)

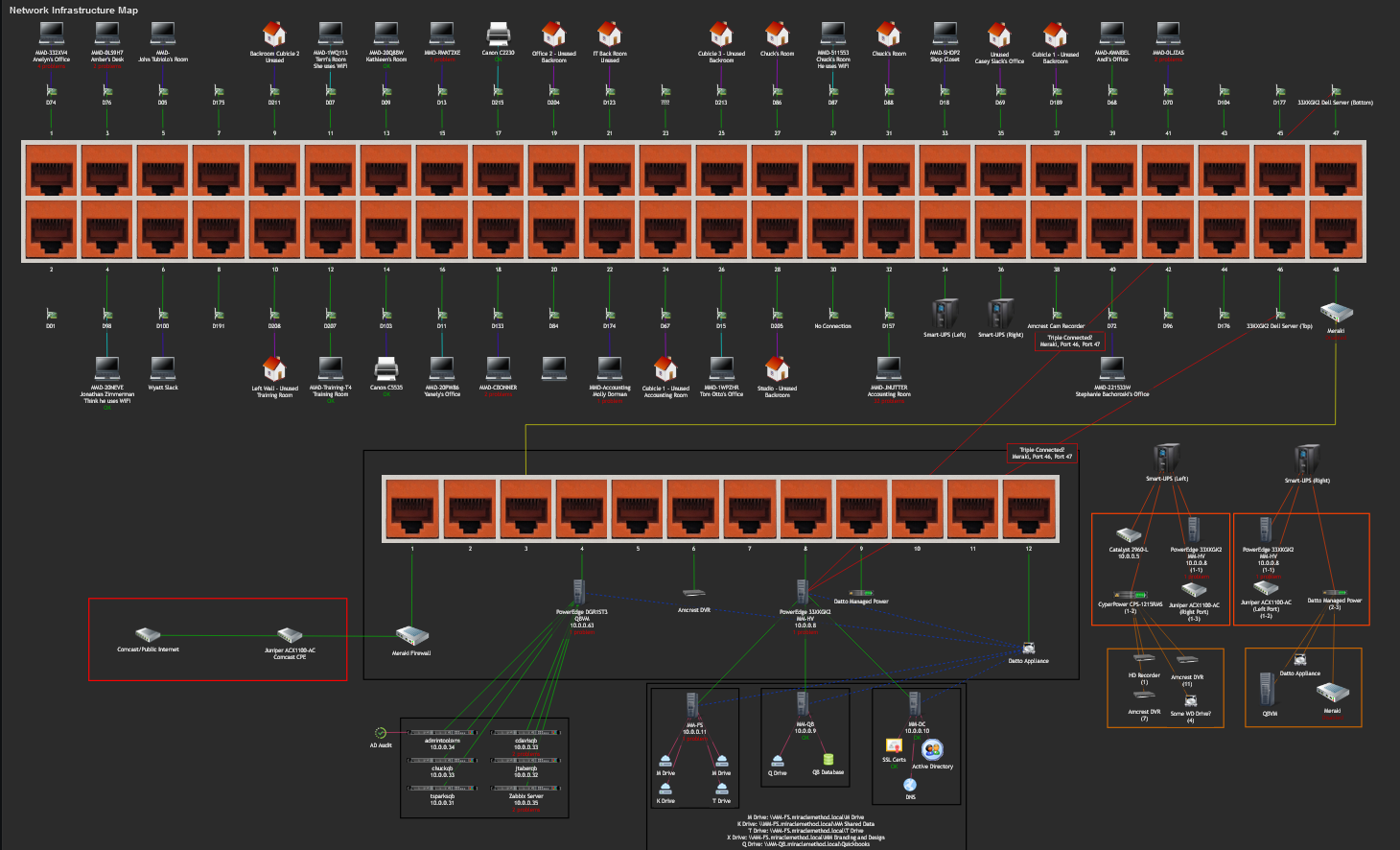

Network Infrastructure Map (Original Version in Zabbix):
